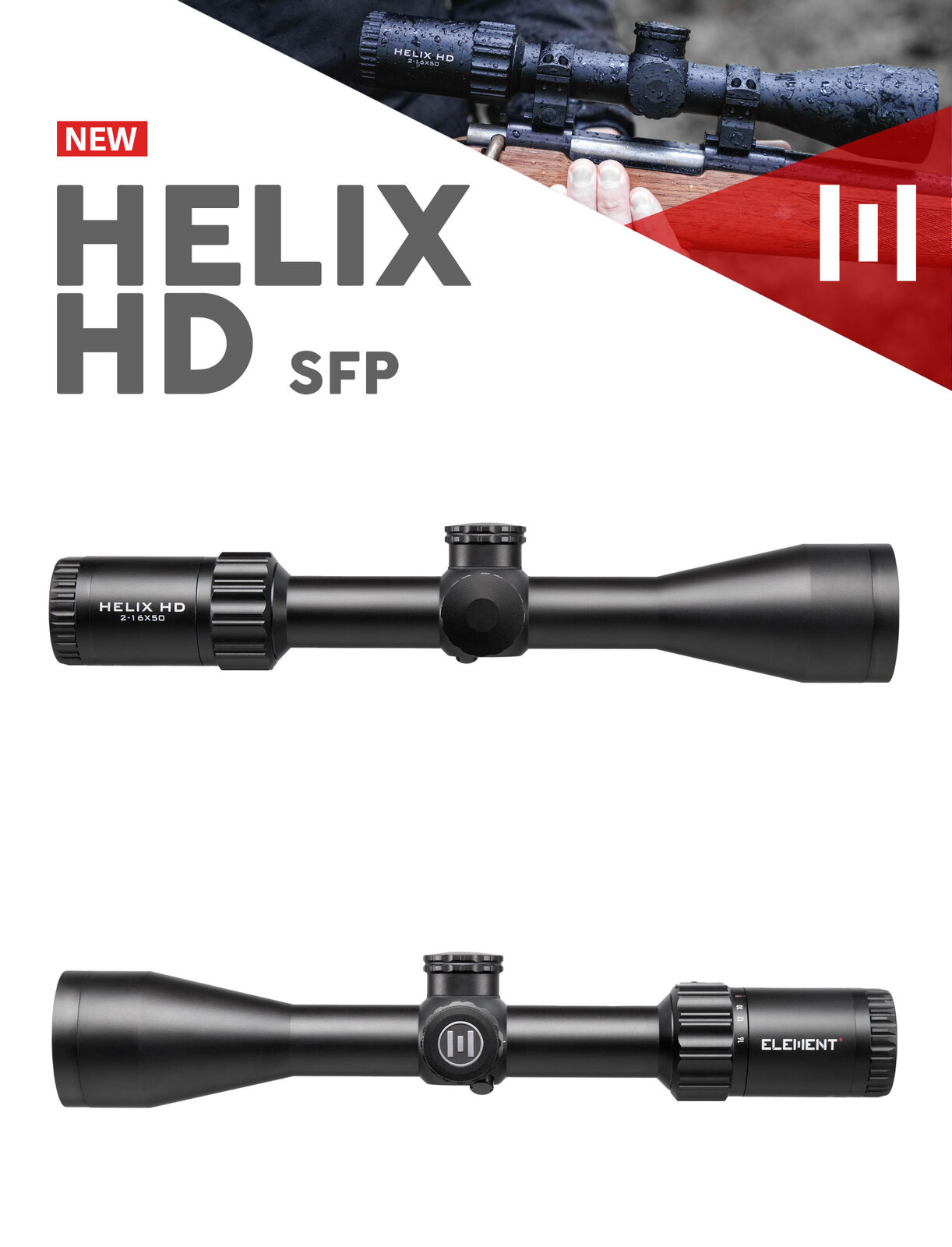

Element Optics has designed the HELIX in a way that puts the important things first: clear glass, smart reticle, innovative features and a turret system superior to other products in the same price class. The HD takes things one step further, with ED Glass, Reticle Illumination, a massive Zoom Range and more Elevation Travel. They’ve capped both the windage and elevation turrets for a more hunter-friendly, compact feel. Stringent quality control procedures give you peace of mind when taking that critical shot, and if something goes wrong, a Platinum Lifetime Warranty has you covered!

  • 30mm Main Body Tube
  • 8x Zoom Optical System
  • Compact, Lightweight design
  • Second Focal Plane Reticle
  • Aircraft Grade Aluminum
  • Side Parallax: 10m-Infinity
  • Fully Multi-Coated Lenses with HD Glass
  • Capped, Resettable Turrets
  • Removable Magnification Throw Lever
  • Waterproof, Fogproof, Shockproof & Nitrogen Purged
  • Sunshade, Lens Cloth, ‘Cheat Sheet’ Stickers & Clear Lens Caps Included




SPECIFICATIONS

  MAGNIFICATION RANGE   2-16x
  TUBE DIAMETER   30mm
  OBJECTIVE LENS DIAMETER   50mm
  EXIT PUPIL   8.5-3.1mm
  EYE RELIEF   101.6mm (4″)
 FIELD OF VIEW   @100m: 20.2 – 2.51m
 CLICK VALUE   1/10 MRAD (6 MRAD / REV)
  ELEVATION ADJUSTMENT RANGE          100 MOA / 29 MRAD
  WINDAGE ADJUSTMENT RANGE   45 MOA / 13 MRAD
  MINIMUM PARALLAX   10 YDS / 10 METERS
  LENGTH   13.39 Inches / 340mm
  WEIGHT   25.6oz / 728gr

(SJSEO-HLHD50052)
