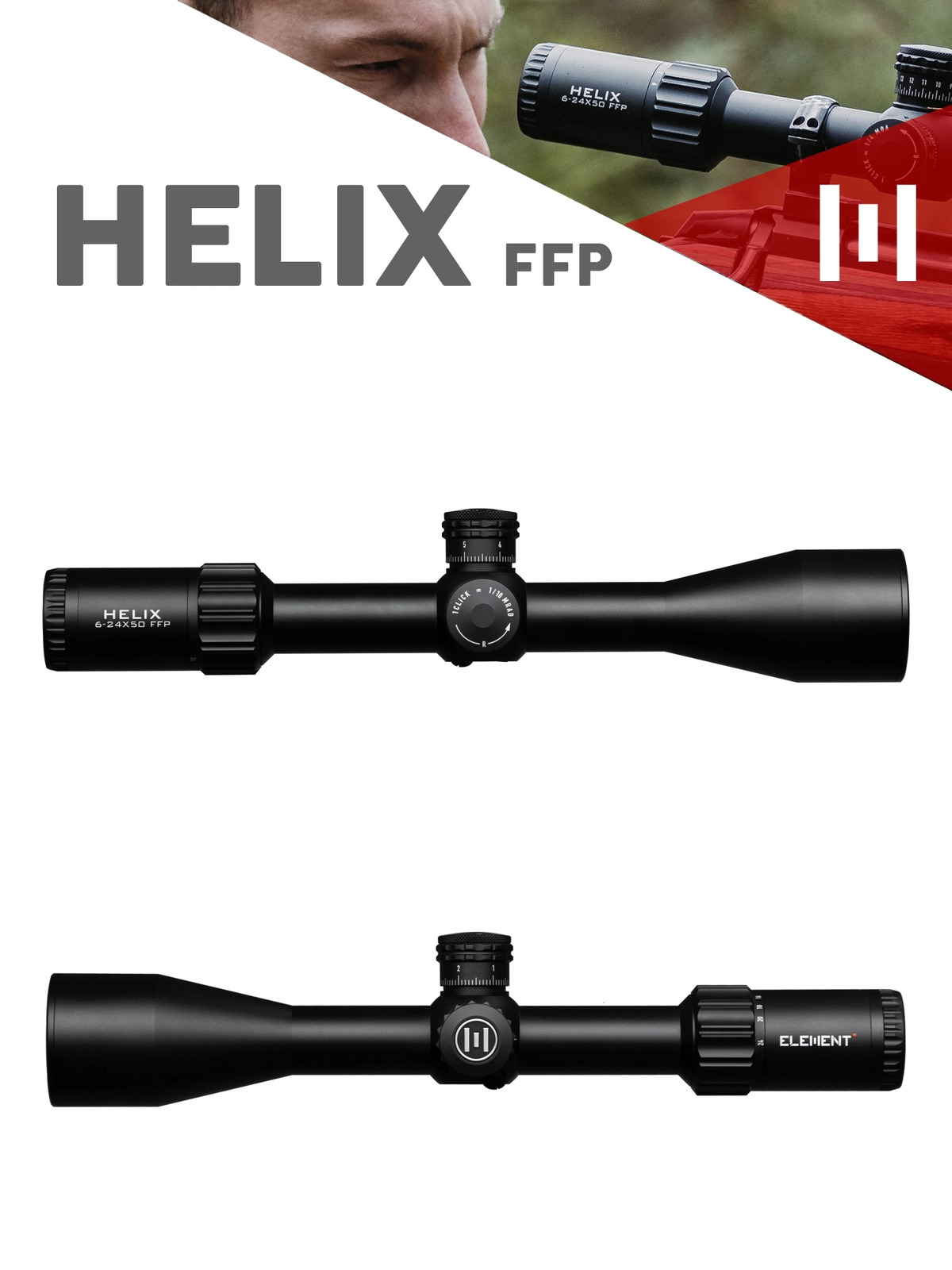

We’ve designed the HELIX in a way that puts the important things first: clear glass, smart reticles, innovative features and a turret system superior to other products in the same price class. The turret system has been upgraded from your stock-standard sporting optic to feature stainless steel internals for resistance against wear-and-tear when dialling regularly – something that modern shooting disciplines require. The tool-free turrets and zero-stop mechanism give you high end features without breaking the bank, and the First Focal Plane reticle ensures precise reticle calibration at all magnifications. We’ve introduced quality control checks to give you peace of mind when taking that 1000 yard shot, and if something goes wrong, our Platinum Lifetime Warranty has you covered!


Available reticles:

 – MRAD APR-2D 4-16 FFP - View reticle info
 – MRAD APR-1C 4-16 FFP - View reticle info
 – MOA APR-2D 4-16 FFP - View reticle info
 – MOA APR-1C 4-16 FFP - View reticle info

Features:

  • 30mm Main Body Tube
  • Compact, Lightweight design
  • First Focal Plane Reticle
  • Aircraft Grade Aluminium
  • Side Parallax: 10yds-Infinity
  • Fully Multi-Coated Lenses
  • Tool-free Resettable Turrets with 6 MRAD / 15 MOA per Revolution
  • Hard Mechanical Zero-Stop
  • Removable Magnification Throw Lever
  • Waterproof, Fogproof, Shockproof & Nitrogen Purged
  • Sunshade, Lens Cloth & Rubber Lens Caps included
MAGNIFICATION RANGE 6-24x
TUBE DIAMETER 30mm
OBJECTIVE LENS DIAMETER 50mm
EXIT PUPIL 9.1-2.2mm
EYE RELIEF 3.7 – 4 Inches
FIELD OF VIEW @100yds: 18.3-4.6 ft
CLICK VALUE 1/4 MOA (15 MOA / REV) 1/10 MRAD (6 MRAD / REV)
ELEVATION ADJUSTMENT RANGE 65 MOA 18.9 MRAD
WINDAGE ADJUSTMENT RANGE 40 MOA 11.6 MRAD
MINIMUM PARALLAX 10 YDS 10 METERS
LENGTH 14.3 Inches 363 mm
WEIGHT 26oz 737gr



DOWNLOAD OWNER'S MANUAL >
