(Scope & rings not included.)

Dual regulators. Quick-Tune System. Endless possibilities.

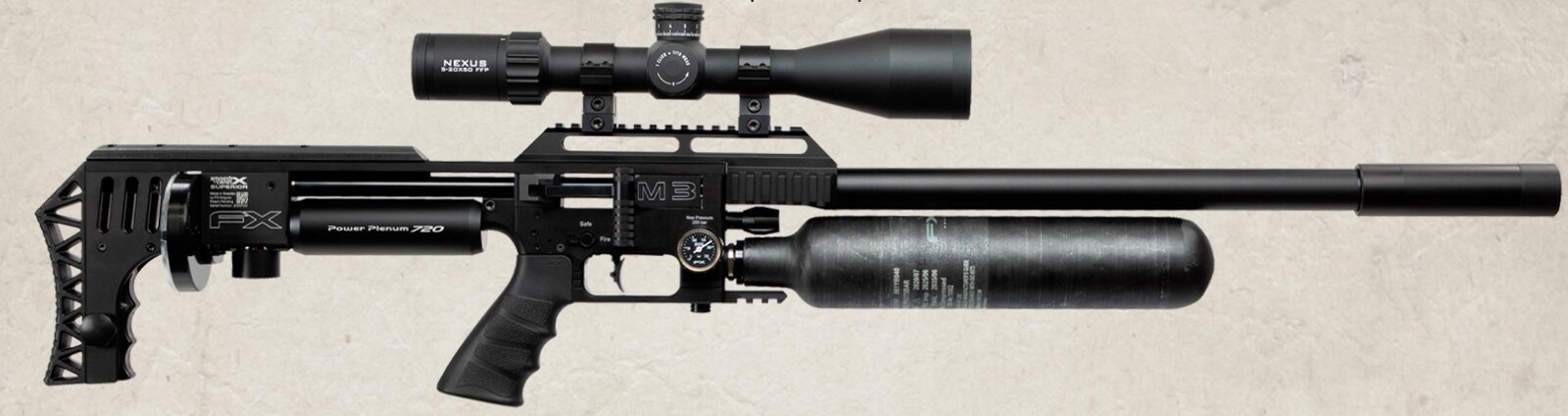

The FX Impact defines what a modern airgun can be. A rifle without limits. It is a once in a generation rifle. A rifle that advances and evolves to push the boundaries of what compressed air can achieve. The Impact M3 once again redefines this high standard with groundbreaking advancements, upgrades, and a sole unwavering focus on creating the most advanced, most accurate, and most capable airgun you’ll ever shoulder.

---

FX Power Plenum 720

The FX Power Plenum 720 is the new energy source of the Impact M3. This larger diameter plenum and its 72cc volume of compressed air provides both the precise amount of air and the power needed to propel the projectile. This new plenum works in coordination with the M3’s porting and valving to deliver the best power and efficiency available.

---

Quick-Tune System for tool free fine tuning

One of the most substantial upgrades to the Impact M3 is the user interface to the rifle: The Quick Tune System. This essentially tool-free system encompasses everything a shooter could use to fine tune their rifle’s accuracy, allowing unlimited possibilities. Adjust the air pressure the rifle is using via the dual regulators, how long the valve stays open with the front valve adjuster, and now adjust the strength of the hammer with the completely redesigned micro and macro power adjustments. The Rear Macro Power Wheel is a 16-step power wheel that adjusts the strength of the hammer in increments of 5-15 FPS (depending on caliber and reg pressure). This works in conjunction with the Micro Fine Adjustment. This tunes the hammer strength in incredibly small increments of just 1-2 fps with each click of the barrel roller, all at your fingertips. The combination of these is unrivalled in the airgun world!

Additional improvements:

• Ambidextrous short throw cocking lever with enlarged handle
• Dual transfer ports on most calibers
• Tightened barrel housing tolerances to provide a tighter fit and better accuracy to the rifle
• Tightened breech tolerances to house the Side-Shot Magazine
• An updated trigger that provides a crisp second stage break while also allowing the trigger post to move forward or back
• 20 MOA built into the scope rail,
• Dual Wika manometers

SPECIFICATIONS

COCKING SYSTEM:  Right hand positioned side-lever with an ambidextrous mount for left-handed shooters

MAGAZINE TYPE:  Removable high capacity, easy load, Made in durable injection-molded POM
34 shot when Cal .177
28 shot when Cal .22
25 shot when Cal .25
23 shot when Cal .30
18 shot when Cal .35"

STOCK:  AR15 style grip, adjustable recoilpad (vertically)

CALIBRE:
4,5 (.177)
5,5 (.22)
6,35 (.25)
7,62 (.30)
9,00 (.35)

BARREL:  Smooth Twist X Superior Liner, Match grade, Free floating
4,5 (.177) Length 600 mm
5,5 (.22) Length 600 mm *500mm if sub 12ft for UK.
6,35 (.25) Length 600 mm
7,62 (.30) Length 600 mm

SHOT CAPACITY:
4,5 (.177) ≈ up to 375 shots
5,5 (.22) ≈ up to 330 shots
6,35 (.25): ≈ up to 160 shots
7,62 (.30): ≈ up to 105 shots
9,00 (.35): ≈ up to 45 shots

FILL PRESSURE:  Max 250 bar (3625 psi)

SAFETY:    Switch style
OPTICS:    Picatinny rail with built in 20 MOA angle
MUZZLE:    Built-In Shroud system with additional moderator (variations may occur depending on country), detachable muzzle
PRESSURE GAUGE:    Tripple pressure gauges: Airtube pressure WIKA, first regulator pressure, second regulator pressure WIKA
TRIGGER:    Adjustable Match Trigger, trigger blade can be adjusted in reach, height and rotated to set the blade in an angle
VELOCITY:    N/A

ENERGY:
4,5 (.177): up to 47 J – 35 ft/lbs
5,5 (.22): up to 107 J – 79 ft/lbs
6,35 (.25): up 120 J – 89 ft/lbs
7,62 (.30): up to 168 J – 124 ft/lbs
9,00 (.35: up to 211 J – 156 ft/lbs
Note: above figures are maximum FAC Power output using slug ammunition and slug powerkit"

AIR CAPACITY:
Compact: 300cc
Standard: 480 cc
Sniper: 580cc
9mm (.35): 580cc

AIR CYLINDER:    Carbon fiber wrapped air tank
LENGTH:    Standard: 860mm – 34″
WEIGHT:    Standard: 3,1kg – 6,85 lbs
CHARGING:    Foster Quick Disconnect
