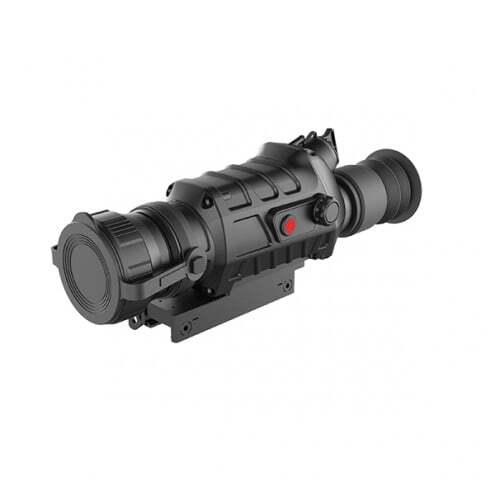

Guide TS435 Thermal Riflescope Specifications

Manufacturer Guide
Thermal riflescopes series Guide TS
Made in -
In production since No
Warranty 2 years
SKU TS435
Variable magnification  Yes
Magnification.  9.2x
Minimal magnification. 2.3x
Maximum magnification. 9.2x
Diopter range  No
Lens diameter.  35 mm
Field of view...  186m/1000m
Field of view (deg.).  10.7°
Min. field of view... 18m/1000m
Max. field of view... 18m/1000m
Eye relief.  0mm
Close focus.  0m
Lens aperture F 1.2
Range of detection. 2400m
Thermal sensor type No
Thermal sensor resolution 400x300
Thermal sensor pixel count. 0.12MP
Pixel pitch. 17μm
NETD. 50mK
Refresh Rate. 50Hz
Calibration mode  No
Temperature sensitivity. 50mK
Display type  AMOLED, OLED
Screen Resolution  1024×768
Display pixel count. 0.79MP
Adjustment per click  No
Elevation (mrad).  0mrad
Elevation (MOA). 0MOA
Windage (mrad).  0mrad
Windage (MOA). 0MOA
Reticle Multi
Number of reticles No
Reticle illumination  No
Image Capture Yes
Image Resolution 1024x768
Video recording Yes
Video resolution 1024x768
Video output Yes
Length. 230 mm
Width. 90 mm
Height. 75 mm
Weight. 660g
Material Metal
Color Black
Working temperature range -40℃ ... 50℃
Power Supply 18650
Battery life. 0h
Filled with  -
Bayonet type No
Mounting Standard No
Waterproof  Yes
Fogproof  Yes
Auto Turn-Off  -
Tripod adaptable -
Compass  No
Built-in rangefinder Yes
Image stabilizer  No
Automatic Brightness Control  -

(SJSGuideTS435)
