SpydaBot SCORPION - SmartRest - VENOM

by SmartRest

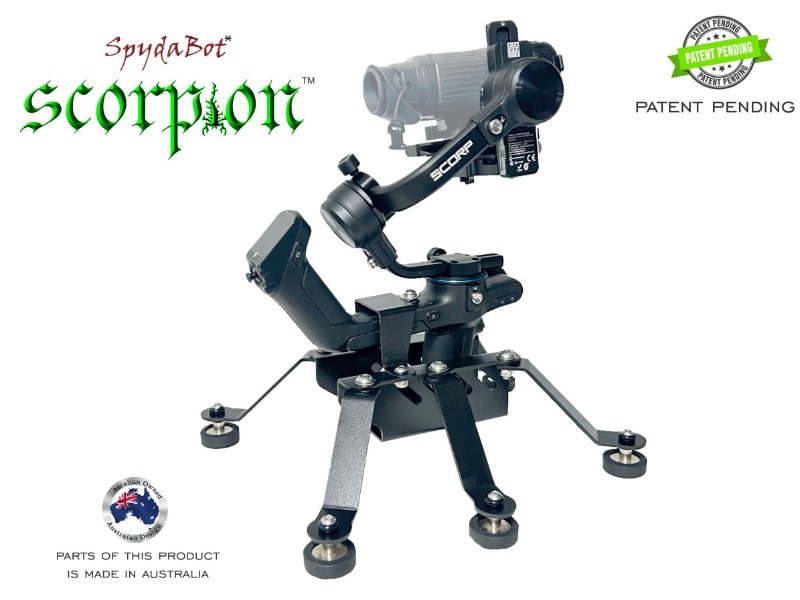

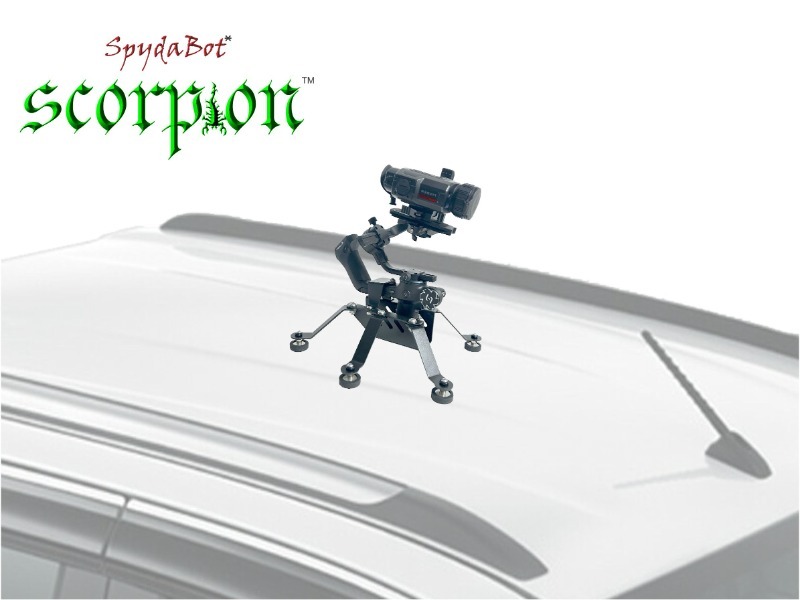

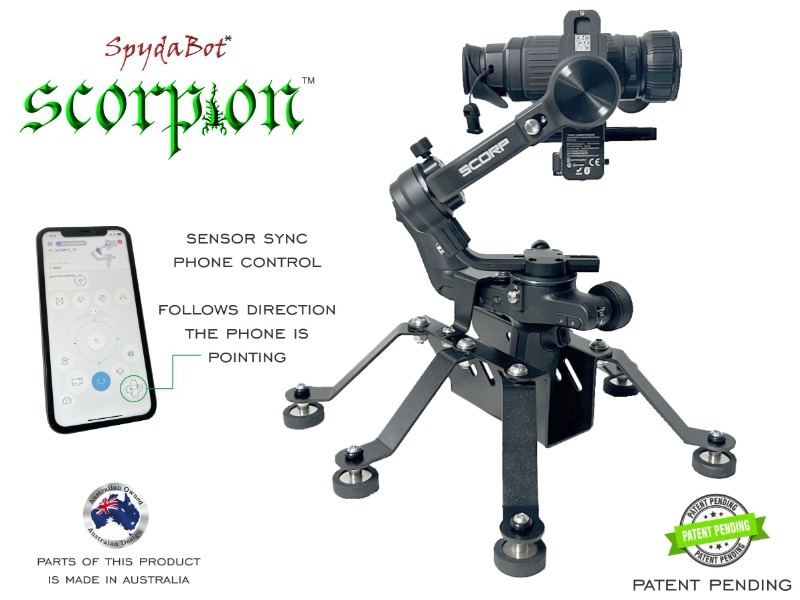

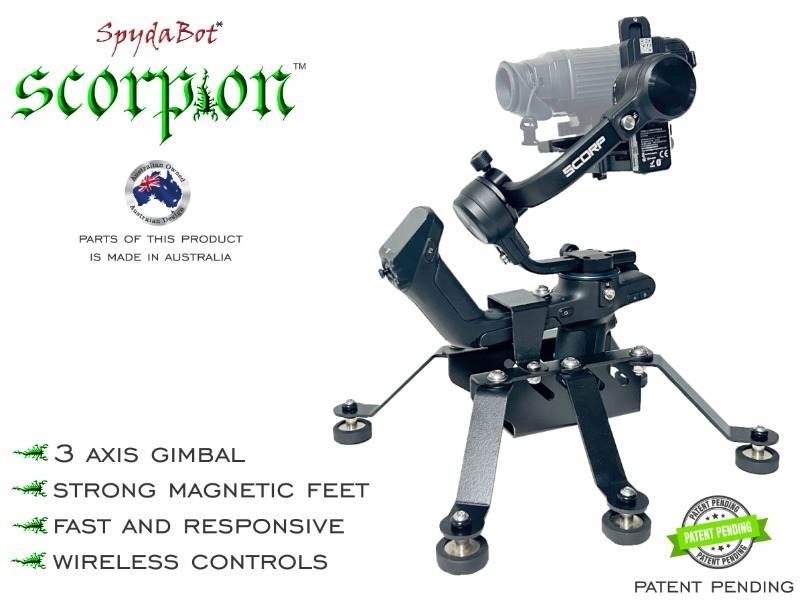

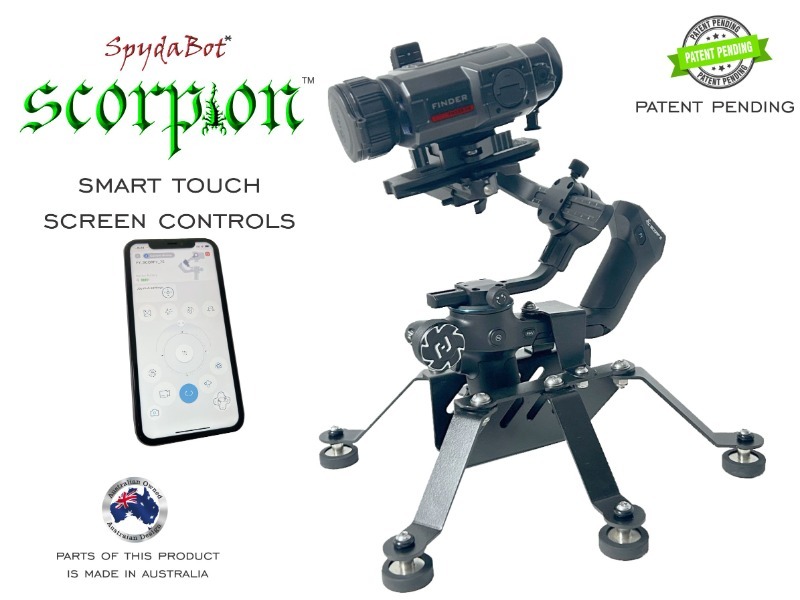

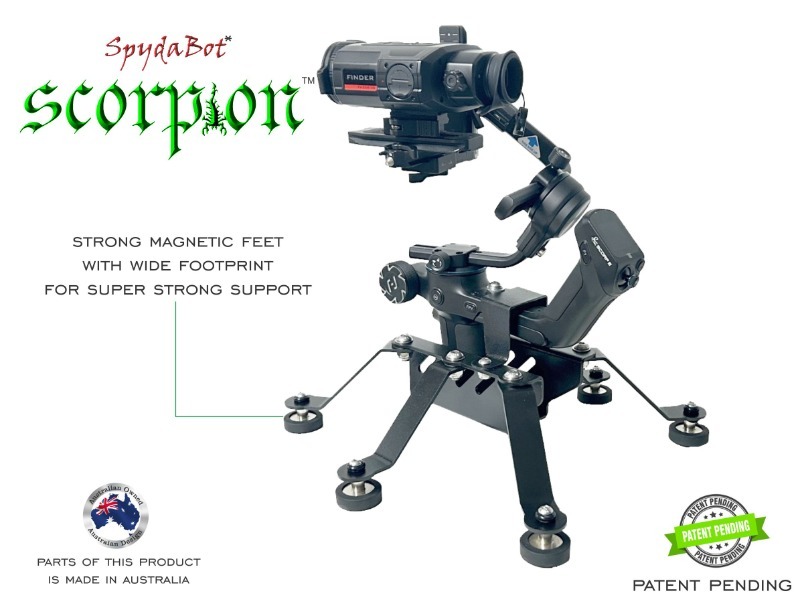

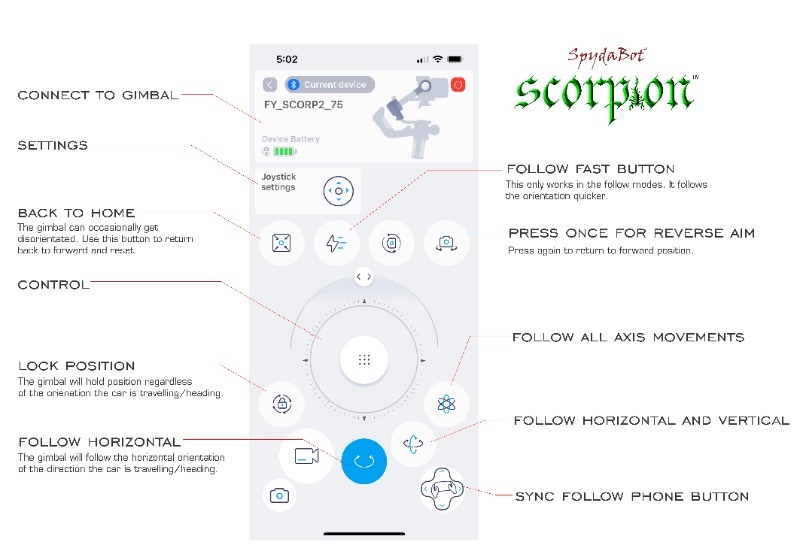

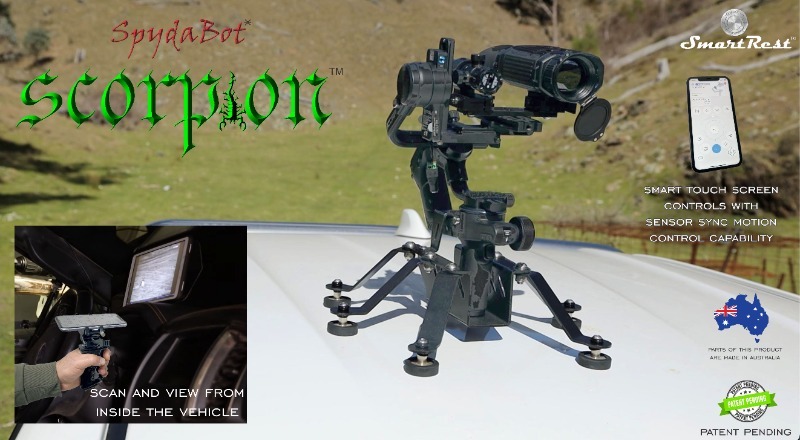

The SpydaBot Scorpion is a 3 axis gimbal which can be wirelessly remote controlled. It features 3 axis leveling ability and can control your camera/thermal monocular device wirelessly via mobile phone app (note: Android phones have a different gyro orientation which means the phone may need to be upright to represent a horizontal position in the Gimbal - Apple's horizontal position is sync'd as horizontal to the Gimbal). The Australian made housing body is a carrier cradle fitted with magnetic feet. The feet can sit on any surface but will magnetize with extreme confidence that it will not only hold on firmly but also withstand any terrain while magnetized to a car. You can have supreme confidence when using SmartRest designed products and rest assured your expensive devices are safe on any one of our carrier systems.

SmartRest has chosen the best and most suitable 3 axis gimbal to do the job. The features and technology will satisfy you and your needs while scanning with this fantastic device.

Assembly Instruction video is here: https://www.youtube.com/watch?v=Ythbeq5GRic&t=17s

Balancing the gimbal video is here: https://www.youtube.com/watch?v=eaxCAbUIhtY&t=236s

Specs on the Gimbal:

Name: Scorp 2

Max Load: 2.5kg

Battery: 13 hours - (note: contrary to factory stated battery life - while constantly scanning the battery will not last 13hrs, we recommend either the power bank available here Power Bank for Scorpion or hard wire direct from the cigarette port to the power terminal port. The power terminal port remains stationary so you can run a hard wire to it without tangling it up.)

Pan range: 360 degrees

Tilt range: 200 to 120 degrees

We recommend you scan while the vehicle is stationary. It is too dangerous to operate equipment while you are on the move and trying to drive.

Uses:

The SpydaBot is used for:

• Scanning with thermal camera from a vehicle
• Scanning with a light from a vehicle
• Pest control uses
• Livestock monitoring
• Security

Advantages:

• Scanning from vehicle with a wireless magnetic mount means no vehicle modifications. No heavy duty handles or mounts.
• Easy mounting technique makes it fast to mount and remove
• All passengers in the vehicle can view the screen
• Quick release system so the thermal camera can be easily removed and used on a wide range of SmartRest units
• Long lasting batteries

 The Scorpion pack includes:

1 x Scorp2 3 axis gimbal (and its contents)

1 x Base housing with 6 x legs bolted on (with a 1/4unc button head bolt and washers)

1 x Bridging bracket with 3 button head bolts with washers and 2 x nuts

6 x magnets with fasteners and grommets

1 x QR pic rail clamp

1 x QR pic Rail for the thermal

Instruction slip on both the housing base and the gimbal. We highly recommend you watch the videos we have made to help you set it up correctly.

Warranty terms and conditions: 1 year on electronics and gimbal. Lifetime on hardware made by SmartRest (Hardware includes: Magnets, bolts, body housing frame, legs and grommets). If items are found to be abused and/or used outside of guidelines will void warranty claims. Whilst the electronic unit is not water proof we have shown a DIY solution you can use. You can find the waterproof hack demo here: https://www.youtube.com/watch?v=Whq11FNmCYU
